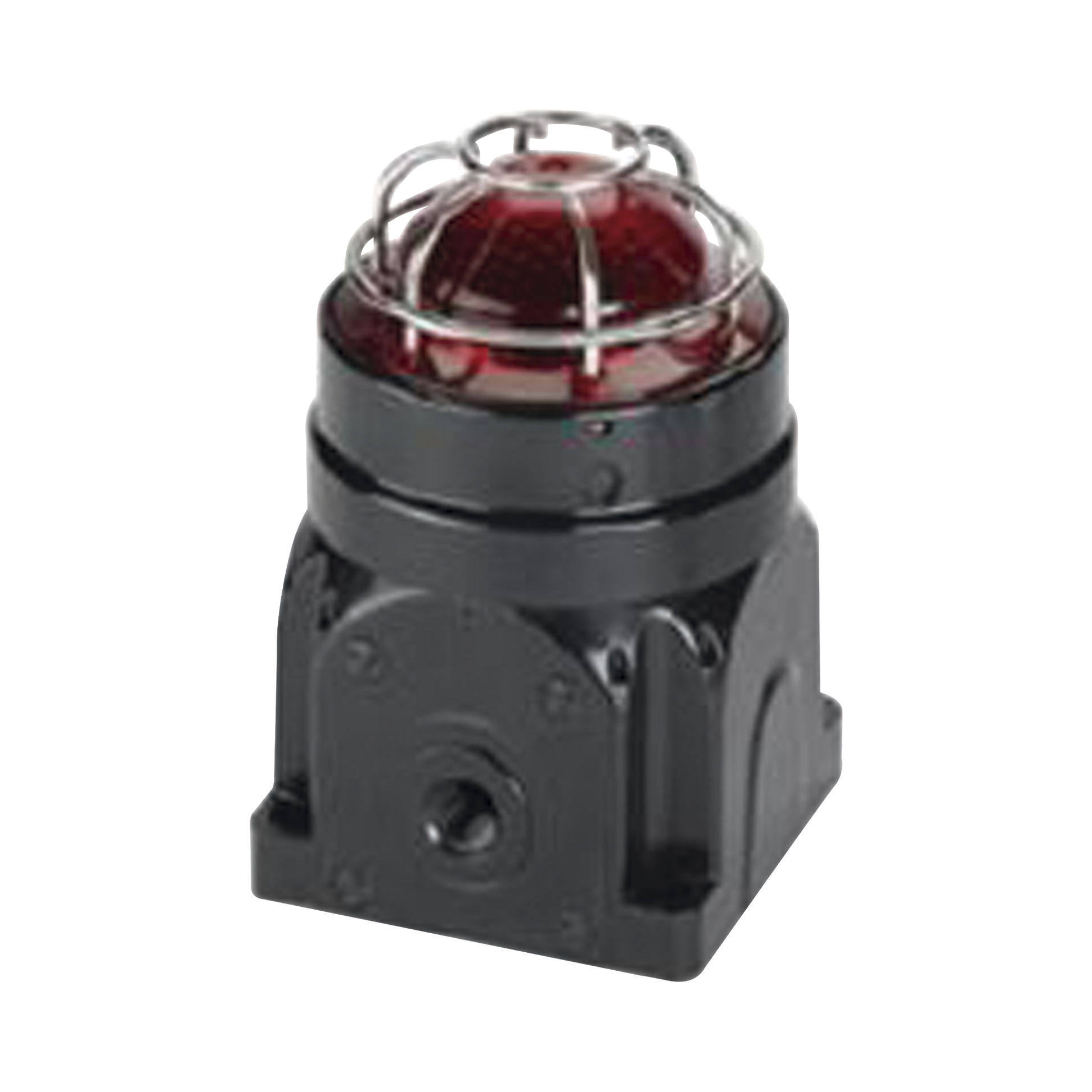

Federal Signal’s patented Global Series® LED Beacons feature a long-life LED the ability to select one of eight (8) flash patterns (user-configurable) and offers two lens options (low or high-profile). The device is rated to the latest protection concept, 'Ex op is' (inherently safe optical radiation). The housing is made from GRP (Glass Reinforced Polyester) designed to serve the demanding needs of offshore marine and land-based industrial applications.

The Global Series LED Beacons flameproof 'Ex d' versions come standard with two (2) M20 entries. The increased safety 'Ex de' versions include a separate terminal chamber for quick field termination or pass-through wiring, and includes three (3) M20 entries in a standard configuration.

These units can be combined with other Global Series products to create factory direct custom configurations, or optional coupling kits are available for limited field fixturing. The Global Series LED Beacon is ideal for use in alarm control panel applications.

Technical Specifications

• Lamp Life: 50,000 Hours
• Light Source/Lamp Style: High-brightness LED Emitter
• Operating Temperature Range: -67ºF to 158ºF (-55ºC to 70ºC)
• Certification Marking: II 2GD Ex d IIC Gb, Ex tb IIIC Db IP66. T6 @ 58ºC; T5 @ 70ºC
• ATEx: Baseefa15ATEX0153X
• IECEx: IECEx BAS 15.0102X
• UL and cUL Certification Marking: Class 1, Division II, Groups A, B, C, D T4 @ 70°C
• UL and cUL Certification Marking: Class 2, Division II, Groups F, G T6 @ 70°C
• UL and cUL Certification Marking: Class III T6 @ 70°C
• UL and cUL: E207119
• Guard & External Fasteners: 316 stainless steel
• Terminals: Ex d: 6 way block (3 in, 3 out)
• Terminals: Ex de: 2x3 position quad pole terminal block
• Cable Entries: Ex d: 2 entries - M20 x 1.5
• Cable Entries: Ex de: 3 entries - M20 x 1.5
• Net Weight: Ex d Surface Mount 6.17 lb
• Net Weight: Ex d U-Bracket Mount 8.15 lb
• Net Weight: Ex de Surface Mount 8.99 lb
