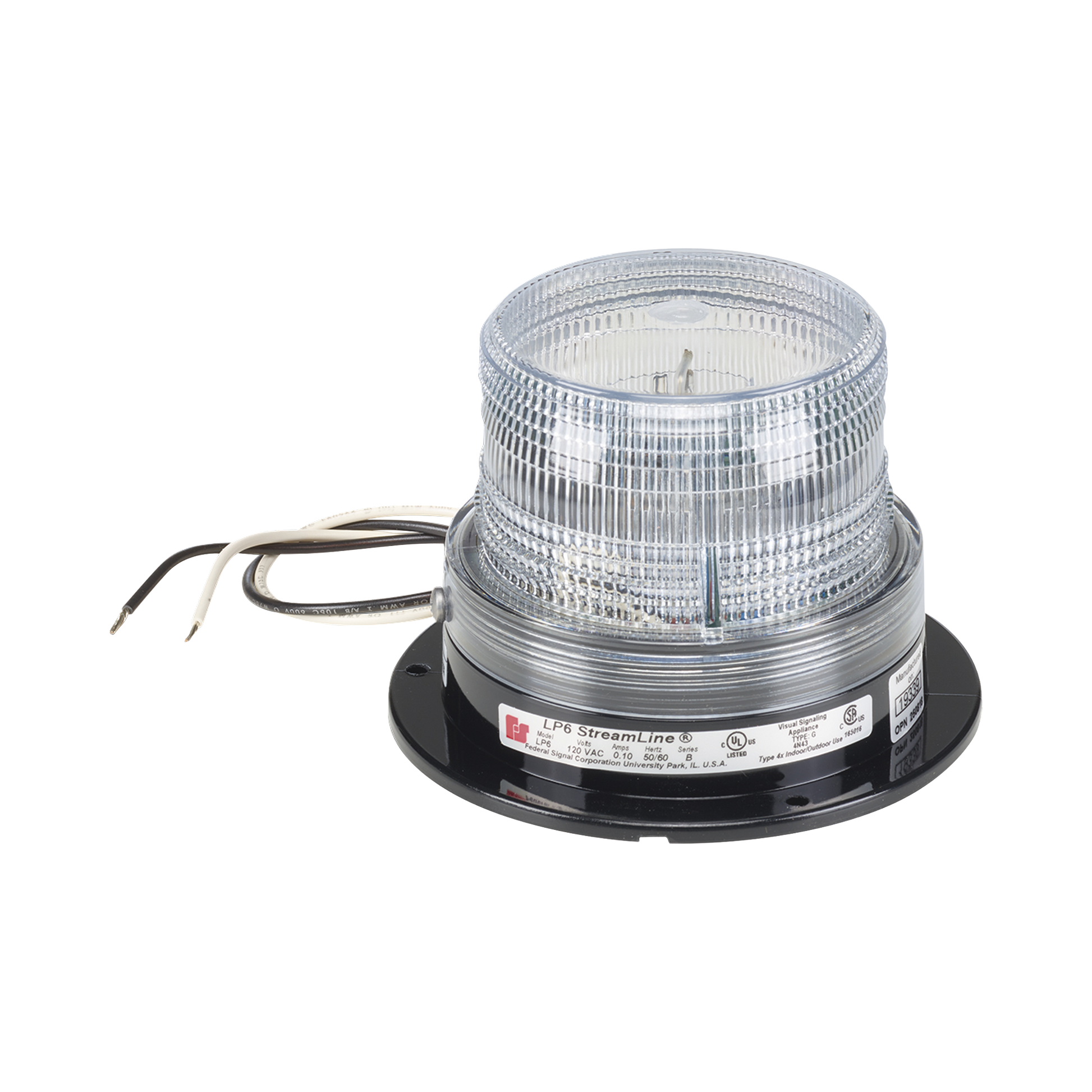

Model LP6 is a very compact, high power strobe light designed for applications where space is critical. At 3-5/8' high, this strobe light is ideal for forklift applications where head room is important. The LP6 also mounts easily to small control panels.
The LP6 features a two joule power supply that works in multiple voltages from 12-48VDC to 120VAC. Modular construction incorporates a powerful flash tube and vibration resistant circuit board.
The LP6 housing utilizes a unique screw-on lens for easy relamping and service. This economical light does not sacrifice power for price or size.
Specifications
General
Mount: Surface
Voltage: 12-48VDC
120VAC
Operating Current: 0.44-0.10 Amps from 12-48VDC
0.10 Amps at 120VAC
Light Source/Lamp Style: Strobe Tube
Lamp Life: 7,000 Hours
Performance
Factory Default Setting: 65 to 95
Peak Candela: 175,000
Effective Candela: 51.5
Operating Temperature Minimum: -31 °F
Operating Current: 150 °F
Physical
Enclosure Rating: Type 4X
Dome Colors: Amber
Blue
Clear
Green
Red
Net Weight: 0.65 lb
Shipping Weight: 0.85 lb
Height: 3.630 in
Diameter: 5.060 in
